PRODUCATOR: BOHLENDER – GERMANIA

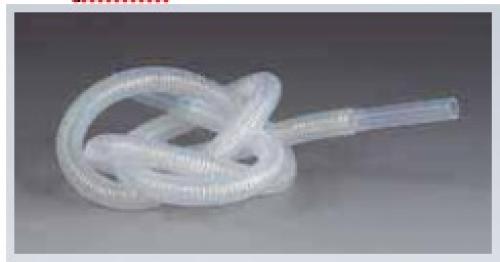

- FURTUNURI FLEXIBILE
Material: PFA
Temperatura de rezistenta: de la -200 pana la +260 grade C
Rezistenta chimica: +++ universal
Material: transparent
Vid: potrivit

Caracteristici tehnice


Dimensiune tub, NW	I. D.	O. D tub	Raza de indoire, mm	Incarcare presiune, O.D.	Lungime 0.25 m Cod catalog	Lungime 0.5 m Cod catalog	Lungime 1.0 m Cod catalog	Lungime 2.5 m Cod catalog
4.5	2	4	5	1,7		S 1822 - 01	S 1822 - 19	S 1822 – 52
8	6	8	15	2	S 1822 - 92	S 1822 - 02	S 1822 - 20	S 1822- 56
10	8	10	18	2	S 1822 -93	S 1822 - 04	S 1822 - 22	S 1822 - 60
13	10	12	23	2	S 1822-94	S 1822 - 06	S 1822-24	S 1822 - 64
14	12	14	25	2		S 1822 - 08	S 1822 - 26	S 1822 - 68
16	14	16	28	2		S 1822 - 10	S 1822-28	S 1822 - 72
19	16	18	32	2	S 1822-98	S 1822-14	S 1822-32	S 1822 - 76
21	17.5	20	35	2		S 1822 - 16	S 1822 -34	S 1822 - 80
23	20,9	25,4	40	1,2		S 1822-18	S 1822 - 36	S 1822 - 84

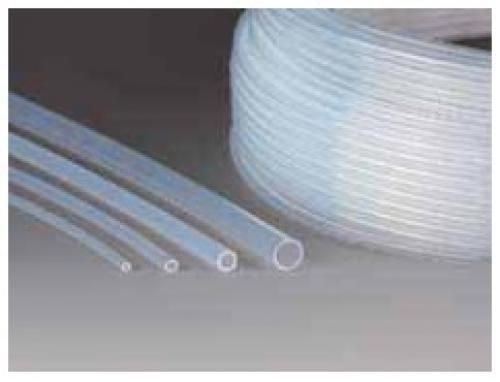

- FURTUNURI DIN PTFE

Material: PTFE
Temperatura de rezistenta: de la -200 pana la +250 grade C
Rezistenta chimica: +++ universal
             transparent, alb
Avantajele acestui produs:
             o rezistenta chimica foarte buna;
            fara agenti extractibili
            suprafata non-adeziva
            poate fi autoclavat

Caracteristici tehnice:

I. D. mm	O. D. mm	Grosime perete, mm	Raza de indoire, mm	Presiune de rupere, bar	Cod catalog
0.2	1.6	0.70	6	960	S 1810-01
0.2	0.4	0.10	2	960	S 1810 – 02
0.3	0.6	0.15	3	140	S 1810 – 04
0.3	1.6	0.65	4	606	S 1810 – 05
0.4	0.9	0.25	3	175	S 1810 – 06
0.5	1.0	0.25	4	140	S 1810 – 08
0.5	1.6	0.55	5	308	S 1810 – 09
0.8	1.6	0.40	7	140	S 1810 - 10
1.0	1.6	0.30	8	84	S 1810 – 12
1.0	2.0	0.50	8	140	S 1810 – 14
1.0	3.0	1.00	9	280	S 1810 – 16
1.2	1.8	0.30	8	70	S 1810 – 18
1.4	2.2	0.40	12	80	S 1810 – 19
1.5	2.1	0.30	14	56	S 1810 – 20
1.5	2.5	0.50	13	93	S 1810 – 22
1.5	3.0	0.75	12	140	S 1810 – 23
1.5	3.5	1.00	12	186	S 1810 – 21
1.6	3.2	0.80	13	140	S 1810 – 26
1.6	2.4	0.40	14	70	S 1810 – 24
1.9	2.5	0.30	20	44	S 1810 – 28
2.0	3.0	0.50	18	70	S 1810 – 30
2.0	4.0	1.00	16	140	S 1810 – 32
2.4	3.2	0.40	25	46	S 1810 – 33
3.0	4.0	0.50	32	46	S 1810 – 34
3.0	5.0	1.00	25	93	S 1810 – 36
3.0	6.0	1.50	24	140	S 1810 – 37
4.0	5.0	0.50	50	35	S 1810 – 38
3.175	6.35	1.58	26	140	S 1810 – 39
4.0	6.0	1.00	36	70	S 1810 – 40
4.35	6.35	1.00	40	64	S 1810 – 42
4.78	6.35	0.79	51	46	S 1810 – 43
5.0	6.0	0.50	72	28	S 1810 – 44
5.0	7.0	1.00	49	56	S 1810 – 46
6.0	7.0	0.50	98	23	S 1810 – 48
6.0	8.0	1.00	64	46	S 1810 – 50
7.0	8.0	0.50	128	20	S 1810 – 52
7.0	9.0	1.00	81	40	S 1810 – 54
7.5	10.0	1.25	80	46	S 1810 – 56
8.0	9.52	0.75	120	26	S 1810 – 58
8.0	10.0	1.00	100	35	S 1810 – 60
8.0	11.0	1.50	80	52	S 1810 – 61
8.0	12.0	2.00	72	70	S 1810 – 62
9.0	11.0	1.00	121	31	S 1810 – 63
10.0	12.0	1.00	144	28	S 1810 – 64
10.0	14.0	2.00	98	56	S 1810 – 66
12.0	14.0	1.00	196	23	S 1810 – 68
12.0	16.0	2.00	128	46	S 1810 – 70
13.0	16.0	1.50	170	32	S 1810 – 72
14.0	16.0	1.00	256	20	S 1810 – 74
16.0	18.0	1.00	324	17	S 1810 – 78
18.0	20.0	1.00	400	16	S 1810 - 84
20.0	22.0	1.00	490	14	S 1810 - 88

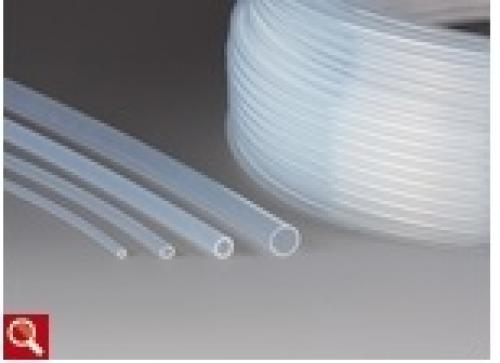

- FURTUNURI DIN FEP


Material: FEP
Rezistenta temperatura: de la -200 grade C pana la +205 grade C
Rezistenta chimica: +++ universal
Material: transparent
Material: neporos, o rezistenta chimica foarte buna, poate fi sterilizat cu radiatii gamma, ETO, E – Beam si poate fi autoclavat

Caracteristici tehnice:

I. D. mm	O. D. mm	Grosime perete, mm	Raza de indoire, mm	Presiune la rupere, mm	Cod catalog
0.8	1.6	0.40	7	112	S 1815 – 04
1.5	3.0	0.75	12	112	S 1815 – 05
1.6	3.2	0.80	13	112	S 1815 – 08
2.0	3.0	0.50	18	56	S 1815 - 07
2.0	4.0	1.00	16	112	S 1815 – 12
3,175	6, 35	1, 58	26	112	S 1815 – 14
3.6	6.0	1.20	30	75	S 1815 – 16
3.96	6.35	1.20	34	67	S 1815 – 24
4.0	6.0	1.00	36	56	S 1815 – 20
4.35	6.35	1.00	52	51	S 1815 – 28
4.78	6.35	0.79	51	37	S 1815 – 30
5.6	8.0	1.20	53	48	S 1815 – 32
6.0	8.0	1.00	64	37	S 1815 - 36

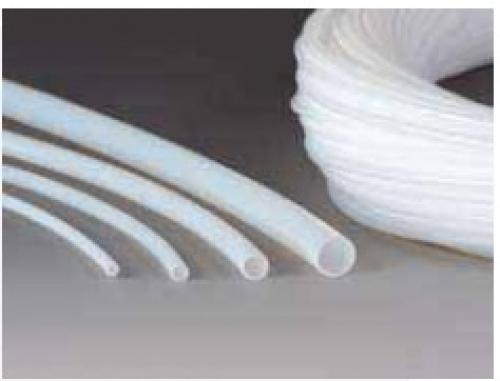

- FURTUNURI DIN PFA

Material: PFA
Rezistenta temperatura: de la -200 pana la +200 grade C
Rezistenta chimica: +++ universal
Material: transparent, neporos, cu o rezistenta chimica foarte buna
Suprafata neadeziva


Caracteristici tehnice:

I. D. mm	O. D. mm	Grosime perete, mm	Raza de indoire, mm	Presiune la rupere, bar	Cod catalog
0.8	1.6	0.40	7	140	S 1811 - 02
1.5	3.0	0.75	12	140	S 1811 - 03
1.6	3.2	0.80	13	140	S 1811 – 04
2.0	3.0	0.50	18	70	S 1811 - 05
2.0	4.0	1.00	16	140	S 1811-06
3.175	6.35	1.58	26	140	S 1811-07
3.6	6.0	1.20	30	96	S 1811-08
3.96	6.35	1.20	34	84	S 1811 – 12
4.0	6.0	1.00	36	70	S 1811-10
4.35	6.35	1.00	52	64	S 1811-14
4.78	6.35	0.79	51	46	S 1811-15
5.6	8.0	1.20	53	60	S 1811-16
6.0	8.0	1.00	64	46	S 1811-18
