PRODUCATOR: OHAUS – SUA/ELVETIA

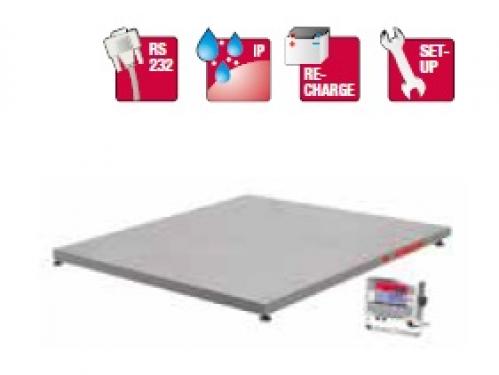

MODELE CU PLATFORMA DIN INOX SI INDICATOR T51XW
=================================================
-SERIA: VFS


Caracteristici generale:

• Platforma din otel inoxidabil cu indicator multifunctional IP66 si IP68 celule de incarcare din otel inoxidabil.
• Aplicatii: cantarire (6 unitati de masura + 1 unitate personalizata), blocare afisaj (display Hold), cantarire dinamica, numarare, verificare cantarire, cantarire procentuala, auto-tare
• Display: LCD, cu iluminare culoare alba
• Operare: incarcator universal sau optional baterie reincarcabila NiMH (bateria este livrata separat la modele cu aprobare OIML)
• Comunicare: interfata RS232
• Constructie: indicator din otel inox IP66, platforma din otel inoxidabil; cutie de distributie IP67 din otel inoxidabil; IP68 OIML R60 celule de incarcare din otel inoxidabil, placa fixa in partea de sus 5 mm grosime (6 mm modelele G/ES)


Caracteristici tehnice:

Model	M APP	Capacitate	Citire (d)	(e )	Platforma (mm)	Cod catalog
VFS-CS30051XW		300 kg	50 g		800 x 800 x 90	22018717
VFS-CS30051XWM	*	300 kg		100 g	800 x 800 x 90	22018743
VFS-CS60051XW		600 kg	100 g		800 x 800 x 90	22018718
VFS-CS60051XWM	*	600 kg		200 g	800 x 800 x 90	22018744
VFS-DS30051XW		300 kg	50 g		1000 x 1000 x 90	22018719
VFS-DS30051XWM	*	300 kg		100 g	1000 x 1000 x 90	22018745
VFS-DS60051XW		600 kg	100 g		1000 x 1000 x 90	22018720
VFS-DS60051XWM	*	600 kg		200 g	1000 x 1000 x 90	22018746
VFS-DS150051XW		1500 kg	200 g		1000 x 1000 x 90	22018721
VFS-DS150051XWM	*	1500 kg		500 g	1000 x 1000 x 90	22018747
VFS-E60051XW		600 kg	100 g		1500 x 1250 x 90	22018722
VFS-E6051XWM	*	600 kg		200 g	1500 x 1250 x 90	22018748
VFS-E150051XW		1500 kg	200 g		1500 x 1250 x 90	22018723
VFS-E150051XWM	*	1500 kg		500 g	1500 x 1250 x 90	22018749
VFS-E300051XW		3000 kg	500 g		1500 x 1250 x 90	22018724
VFS-E300051XWM	*	3000 kg		1000 g	1500 x 1250 x 90	22018750
VFS-ES60051XW		600 kg	100 g		1500 x 1500 x 90	22018725
VFS-ES60051XWM	*	600 kg		200 g	1500 x 1500 x 90	22018751
VFS-ES150051XW		1500 kg	200 g		1500 x 1500 x 90	22018726
VFS-ES150051XWM	*	1500 kg		500 g	1500 x 1500 x 90	22018752
VFS-ES300051XW		3000 kg	500 g		1500 x 1500 x 90	22018727
VFS-ES300051XWM	*	3000 kg		1000 g	1500 x 1500 x 90	22018753
VFS-G150051XW		1500 kg	200 g		2000 x 1500 x 90	22018728
VFS-G150051XWM	*	1500 kg		500 g	2000 x 1500 x 90	22018754
VFS-G300051XW		3000 kg	500 g		2000 x 1500 x 90	22018729
VFS-G300051XWM	*	3000 kg		1000 g	2000 x 1500 x 90	22018755

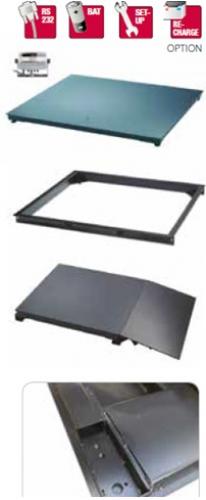

MODELE CU PLATFORMA DIN OTEL VOPSIT SI INDICATOR T51P
=====================================================
-SERIA: VFP


Caracteristici generale:

• Indicator T51P
• Platforma din otel acoperit cu vopsea
• Celule de incarcare din otel inoxidabil IP68

Aplicatie: cantarire (6 unitati de masura + 1 unitate personalizata), blocare afisaj (display Hold), cantarire dinamica, numarare, verificare cantarire, cantarire procentuala, auto tare
Display: incarcator universal, 6 x C baterii optionale sau optional NiMH baterii reincarcabile
Comunicare: interfata RS232 cu GMP, timp – data, optional RS422/485
Constructie: Indicator ABS, platforma din otel vopsit, cutie jonctiune din otel inox IP67 clasa de protectie, celule de incarcare din otel inoxidabil clasa de protectie IP68 OIML, placa fixa in partea de sus 5 mm grosime

Caracteristici tehnice:

Model	M App	Capacitate	Citire (d)	(e )	Platforma (mm)	Cod catalog
VFP-CS30051P		300 kg	50 g		800 x 800 x 90	22018704
VFP-CS30051PM	*	300 kg		100 g	800 x 800 x 90	22018730
VFP-CS60051P		600 kg	100 g		800 x 800 x 90	22018705
VFP-CS60051PM	*	600 kg		200 g	800 x 800 x 90	22018731
VFP-DS30051P		300 kg	50 g		1000 x 1000 x 90	22018706
VFP-DS30051PM	*	300 kg		100 g	1000 x 1000 x 90	22018732
VFP-DS60051P		600 kg	100 g		1000 x 1000 x 90	22018707
VFP-DS60051PM	*	600 kg		200 g	1000 x 1000 x 90	22018733
VFP-DS150051P		1500 kg	200 g		1000 x 1000 x 90	22018708
VFP-DS150051PM	*	1500 kg		500 g	1000 x 1000 x 90	22018734
VFP-E60051P		600 kg	100 g		1500 x 1250 x 90	22018709
VFP-E60051PM	*	600 kg		200 g	1500 x 1250 x 90	22018735
VFP-E150051P		1500 kg	200 g		1500 x 1250 x 90	22018710
VFP-E150051PM	*	1500 kg		500 g	1500 x 1250 x 90	22018736
VFP-E300051P		3000 kg	500 g		1500 x 1250 x 90	22018711
VFP-E300051PM	*	3000 kg		1000 g	1500 x 1250 x 90	22018737
VFP-ES60051P		600 kg	100 g		1500 x 1500 x 90	22018712
VFP-ES60051PM	*	600 kg		200 g	1500 x 1500 x 90	22018738
VFP-ES150051P		1500 kg	200 g		1500 x 1500 x 90	22018713
VFP-ES150051PM	*	1500 kg		500 g	1500 x 1500 x 90	22018739
VFP-ES300051P		3000 kg	500 g		1500 x 1500 x 90	22018714
VFP-ES300051PM	*	3000 kg		1000 g	1500 x 1500 x 900	22018740
VFP-G150051P		1500 kg	200 g		2000 x 1500 x 90	22018715
VFP-G150051PM	*	1500 kg		500 g	2000 x 1500 x 90	22018741
VFP-G300051P		3000 kg	500 g		2000 x 1500 x 90	22018716
VFP-G300051PM	*	3000 kg		1000 g	2000 x 1500 x 90	22018742

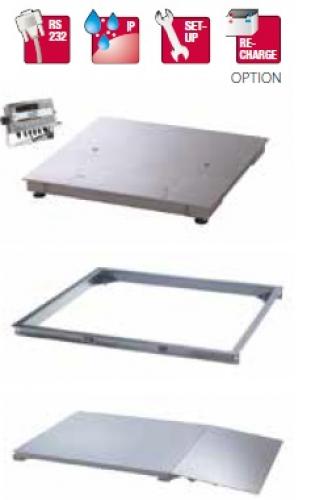

MODELE ECONOMICE CU PLATFORMA DIN INOX
=========================================
-SERIA VE Stainless Steel


• Modele economice, cu platforma din otel inoxidabil si indicator T32XW
• Usor de utilizat cu indicator din otel inox IP65 si celule de incarcare IP67
• Baterie interna reincarcabila

Aplicatii:  cantarire (5 unitati de masura), numarare parti
Display: LCD cu iluminare alba
Comunicare: interfata RS232
Constructie: IP65 indicator otel inoxidabil, platforma din otel inoxidabil, placa fixa in partea de sus 5 mm grosime, celule de incarcare 4 x H8C IP67 OIML R60 din Aliaj de otel



Caracteristici tehnice:

Model	M App	Capacitate	Citire (d)	( e )	Platforma (mm)	Cod catalog
VE1500S32XW-EU		1500 kg	500 g		1000 x 1000 x 90	83997642
VE1500S32XW-M	*	1500 kg		500 g	1000 x 1000 x 90	80253282
VE1500R32XW-EU		1500 kg	500 g		1250 x 1250 x 90	83997643
VE1500R32XW-M	*	1500 kg		500 g	1250 x 1250 x 90	80253283
VE3000R32XW-EU		3000 kg	1000 g		1250 x 1250 x 90	83997644
VE3000R32XW-M	*	3000 kg		1000 g	1250 x 1250 x 90	80253284
VE1500L32XW-EU		1500 kg	500 g		1500 x 1500 x 90	83997645
VE1500L32XW-M	*	1500 kg		500 g	1500 x 1500 x 90	80253285
VE3000L32XW-EU		3000 kg	1000 g		1500 x 1500 x 90	83997646
VE3000L32XW-M	*	3000 kg		1000 g	1500 x 1500 x 90	80253286


MODELE ECONOMICE CU PLATFORMA DIN OTEL VOPSIT SI INDICATOR T31P
================================================================
-SERIA: VE
* platforma din otel vopsit cu indicator TG31P
* celule de incarcare IP67 din Aliaj de Aluminiu
* baterie interna reincarcabila

Caracteristici tehnice:

Model	APP M	Capacitate	Citire (d)	( e )	Platforma (mm)	Cod catalog
VE1500S31P		1500 kg	500 g		1000 x 1000 x 90	72204367
VE1500S31P-M	*	1500 kg		500 g	1000 x 1000 x 90	80251865
VE1500R31P		1500 kg	500 g		1250 x 1250 x 90	72204368
VE1500R31P-M	*	1500 kg		500 g	1250 x 1250 x 90	80251866
VE3000R31P		3000 kg	1000 g		1250 x 1250 x 90	72204369
VE3000R31P-M	*	3000 kg		1000 g	1250 x 1250 x 90	80251867
VE1500L31P		1500 kg	500 g		1500 x 1500 x 90	72204370
VE1500L31P-M	*	1500 kg		500 g	1500 x 1500 x 90	80251868
VE3000L31P		3000 kg	1000 g		1500 x 1500 x 90	72204371
VE3000L31P-M	*	3000 kg		1000 g	1500 x 1500 x 90	80251869

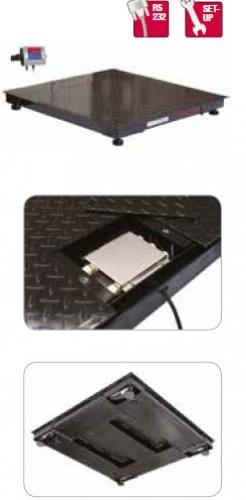

MODELE UNIVERSALE CU PLATFORMA DIN OTEL VOPSIT SI INDICATOR T32M
===============================================================
-SERIA: DF

Caracteristici generale:

• Celule de incarcare din aliaj de otel, clasa de protectie IP67
• Aplicatie: cantarire (5 unitati de masura), numarare parti, acumulare cantarire
• Display: LCD
• Operare: adaptor AC (livrat)
• Comunicare: interfata RS232
• Constructie: indicator din metal, platforma din otel vopsit, placa de sus fixta 5 mm grosime, 4 x H8C IP67 OIML R60 aliaj din otel, cutie de distributie din otel inox IP65



Caracteristici tehnice:

Model	Capacitate	Citire (d)	Platforma (mm)	Cod catalog
DF32M1500BS	1500 kg	500 g	800 x 800 x 110	83997598
DF32M1500BR	1500 kg	500 g	1000 x 1000 x 110	83997597
DF32M1500BL	1500 kg	500 g	1200 x 1200 x 110	83997596
DF32M3000BL	3000 kg	1000 g	1200 x 1200 x 110	83997595
DF32M1500BLX	1500 kg	500 g	1200 x 1500 x 110	83997585
DF32M3000BLX	3000 kg	1000 g	1200 x 1500 x 110	83997584
DF32M1500BX	1500 kg	500 g	1500 x 1500 x 110	83997594
DF32M3000BX	3000 kg	1000 g	1500 x 1500 x 110	83997593
